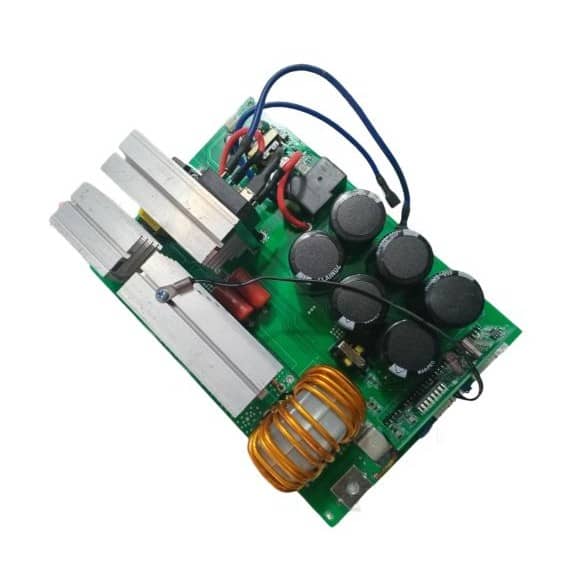

Single PCB – 4 IGBT 4 Diode

Overview

Engineered for serious duty cycles, this single power PCB assembles four IGBTs with matching free-wheel/rectifier diodes to deliver stable, low-loss switching under load.

• High surge tolerance and clean switching edges
• Optimized track geometry for equal current distribution
• Drop-in style layout compatible with common inverter builds

Included: Single PCB – 4 IGBT 4 Diode (assembled)
